3.9m – 4.2m Narrow Aluminium Mobile Scaffold Tower (Standing Height)

3.9m – 4.2m Narrow Aluminium Mobile Scaffold Tower (Standing Height)

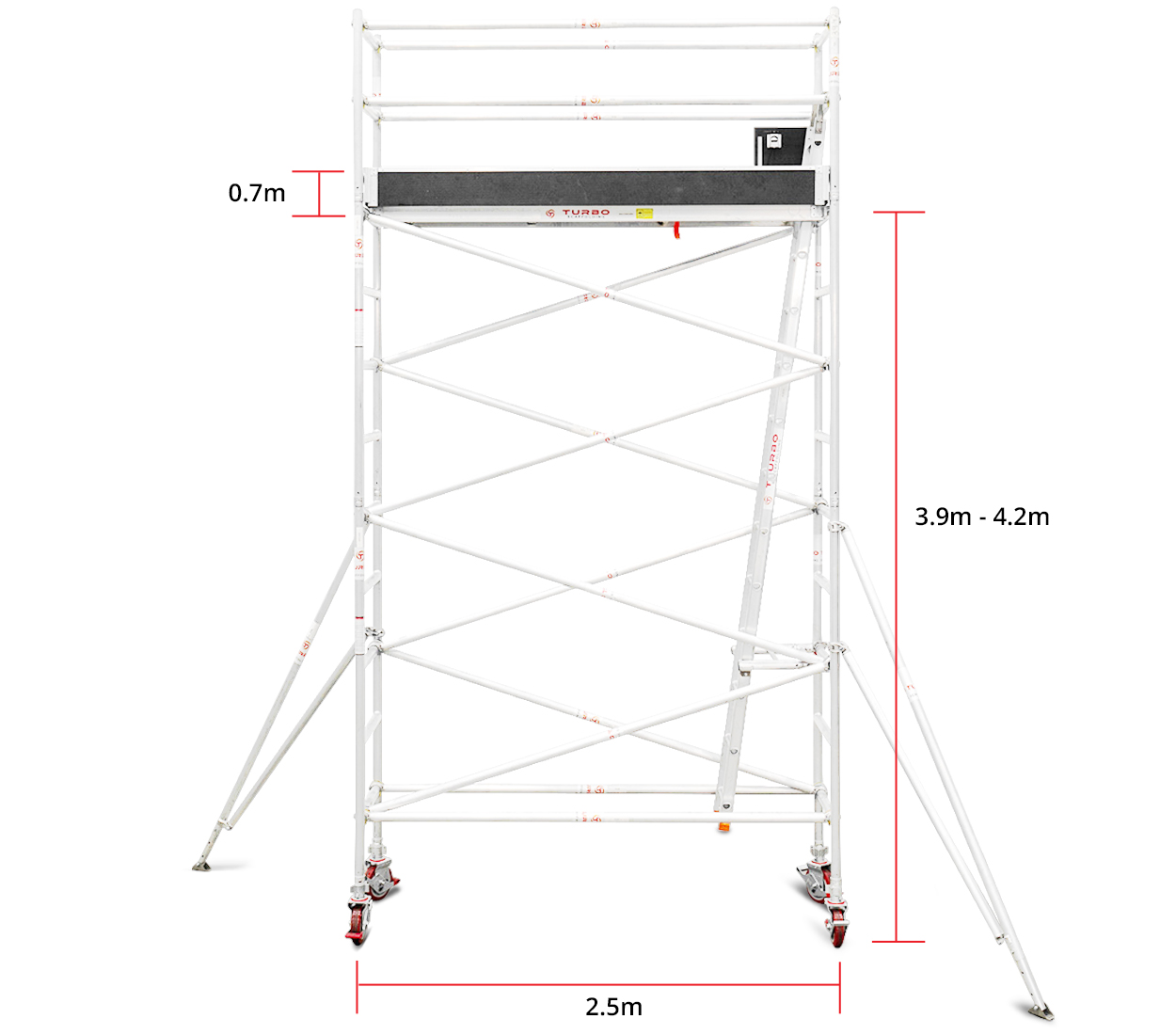

  • W: 0.7m
  • L: 2.5m
  • H: 3.9 - 4.2m
Code: 3.9M/4.2MNAMT

$2,971.97 (Inclusive GST)

Package Inclusion

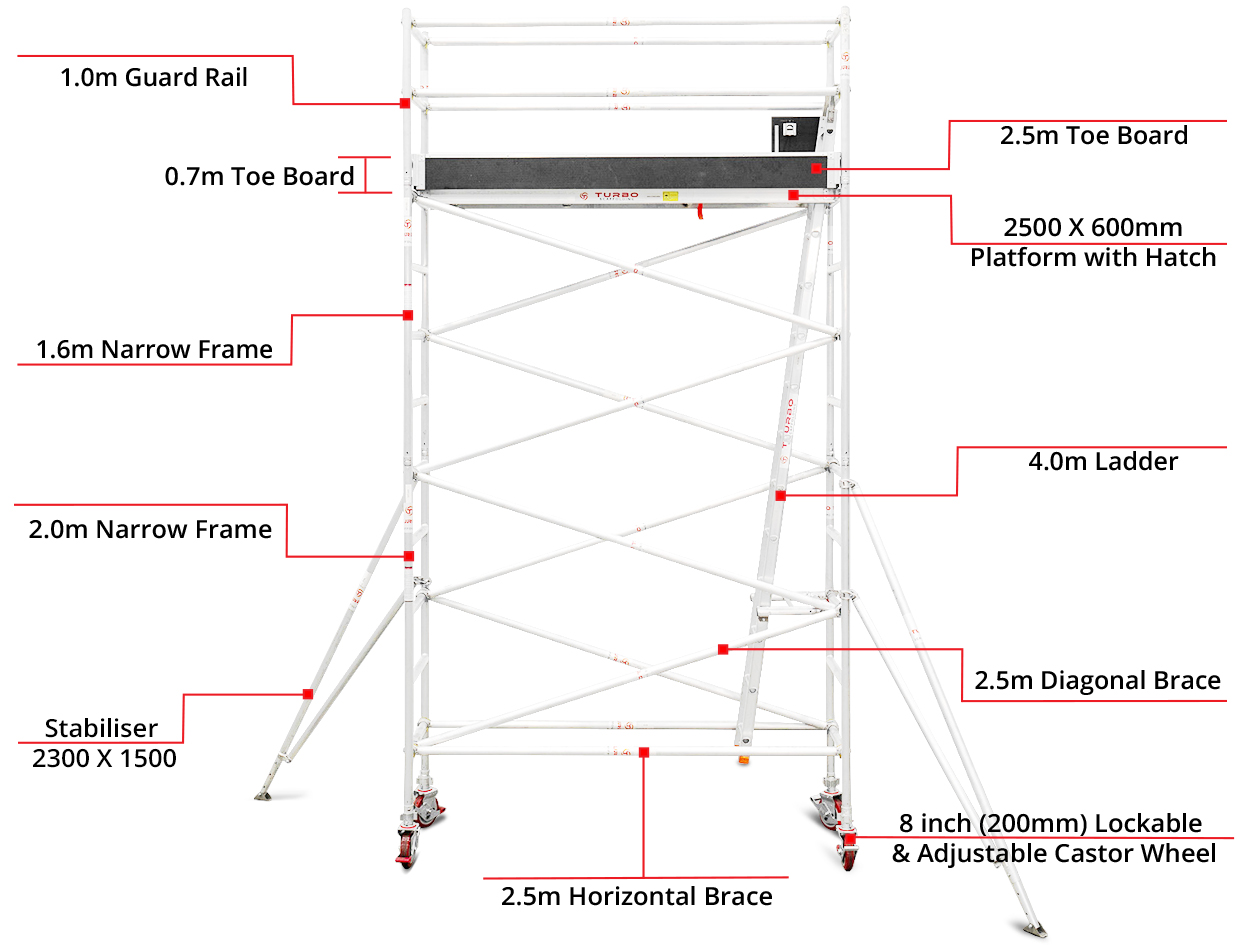

CODEDESCRIPTIONQTY
CWA8 CGH 8- inch (200mm) Lockable & Adjustable Castor Wheel 4
NF5-400 2.0m Narrow Frame 2
NF4-400 1.6m Narrow Frame 2
FG1 1.0m Guard Rail 2
WHB 2.5m Horizontal Brace (Gold) 6
WDB 2.5m Diagonal Brace (Blue) 8
KA-2.5x0.6PH 2500*600mm Platform with Hatch 1
AL60-04 4.0m Ladder 1
S3 Stabiliser 2300 x 1500 2
TB07 0.7m Toe Board 2
TB25 2.5m Toe Board 2
Payment options:
Payment option

Buy Online

Click on "Add to cart" to Buy Online

Pickup Options:
Qty:
or

Shipping Enquiry

Click on below button to get "Shipping quote"

Painters, Roofers and Electricians will love our aluminium mobile scaffolding. Extending over 4mtr standing height it does need to be erected by a qualified scaffolder. If you need a platform in tight access, the narrow 0.7mtr width is great as it will fit spaces such as the side of a house, or a staircase.

If you’re looking for a solution to height and stability for any home handyman jobs then our mobile scaffolding solution could be the best addition to your toolbox.

CGH Scaffold suggests it would be easier to erect with 2 people as the total weight of the scaffold is 155.00kg’s with its heaviest piece being 22.60kg’s. STill compact enough for easy transport and storage.

Providing a SWL of 225kg’s, it’s perfect for all kinds of small jobs.

Delivery available in Adelaide, SA metro region only or you can arrange for a pick up from one of our Adelaide, SA location warehouse.

Tower Inclusions :
Adjustable Castor Wheels Our mobile scaffold castor wheels are made of polyurethane and 200mm thick. They have a safe working load of 225kgs and are fitted with a working locking system to prevent rolling or any movement when braking. All wheels feature 360 degree movement to provide easy transport.
Narrow Aluminium Frames (2.0m) The larger of the frames for the narrow aluminium tower with an overall height of 2.0m. The top of the frames have a spigot which can be used to insert into other frames to extend. The locking pin can be applied for quick safety measures so there is no movement.
Narrow Aluminium Frames (1.6m) The smaller of the frames for the narrow aluminium tower with an overall height of 1.6m. The top of the frames have a spigot which can be used to insert into other frames to extend. The locking pin can be applied for quick safety measures so there is no movement.
Narrow Guard Rail This guard rail system is the top frame to provide safety atop the standing structure. The frame is durable and have 2mm wall thickness on the aluminium tube. This guard rail is suited for the narrow tower and has an overall height of 1m.
Horizontal Brace (Gold) The horizontal brace is to provide stability to the structure from end to end. The brace has a spring-loaded clip which can be easily applied to the end frames and provides simple connectivity.
Diagonal Brace (Blue) The diagonal brace is to provide more stability to the structure than the horizontal brace. The brace has a spring-loaded clip which can be easily applied to the end frames and provides simple connectivity.
Platform with Hatch Deck The platform is manufactured with marine plywood and has an safe but simple ladder hatch, which provides safe access to passengers between levels.
Aluminium Scaffold Ladder 4m Our Aluminium ladders feature an offset brace to secure ladders on certain angles while hooking into the scaffold frames. The ladders come in 4m sizes.
S3 Stabilisers, 2300mm to 3000mm Stabilizer legs attach to the scaffold via couplers to help stabilize the structure and provide support. The stabilizers have the ability to alter the range required. The rubber soles on the swivel legs provide extra support and grip.
0.7m Toe Board Timber Kickboards are made of plywood and securely fit into the scaffold to provide safety to falling objects.
2.5m Toe Board Timber Kickboards are made of plywood and securely fit into the scaffold to provide safety to falling objects.
